Rheidon 11 kW portable EV charger

Rheidon 11 kW portable EV charger

5,490.00 MDL
5,490.00 MDL
Sale Sold out
Taxes included.
  • Fast charging, worry-free range - Charge up to 65 kilometers of range per hour, ensuring your vehicle is always ready. Perfect for quick charging during work hours or reliable power on family trips. Even a short charging session provides enough range for your trip.

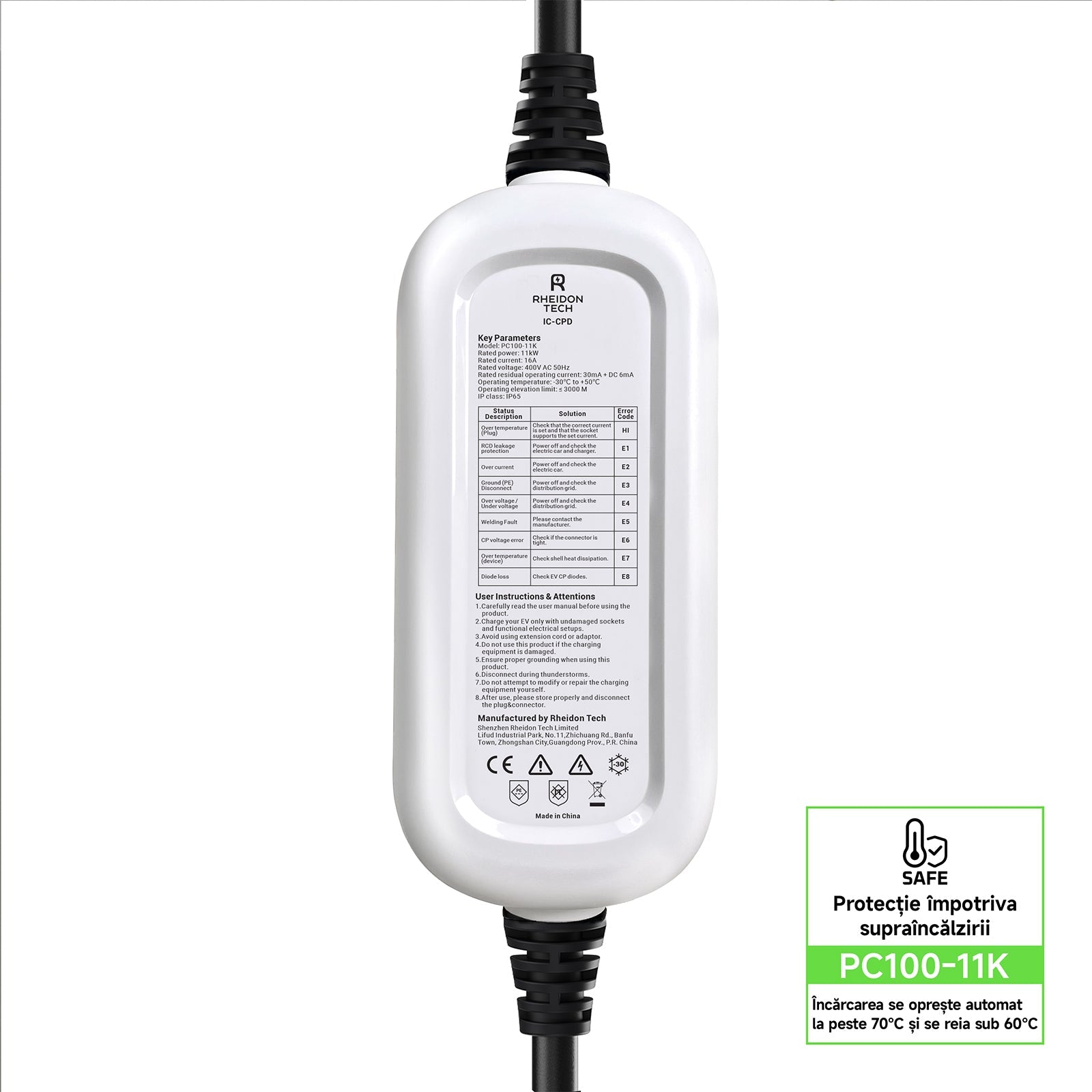

  • Intelligent Overheat Protection - Charging automatically stops if the outlet temperature exceeds 70°C and resumes when it drops to 60°C, maintaining safety during extended charging sessions.
  • Easy charging status monitoring with large HD screen - Easily monitor all essential charging details at a glance, even in bright environments.

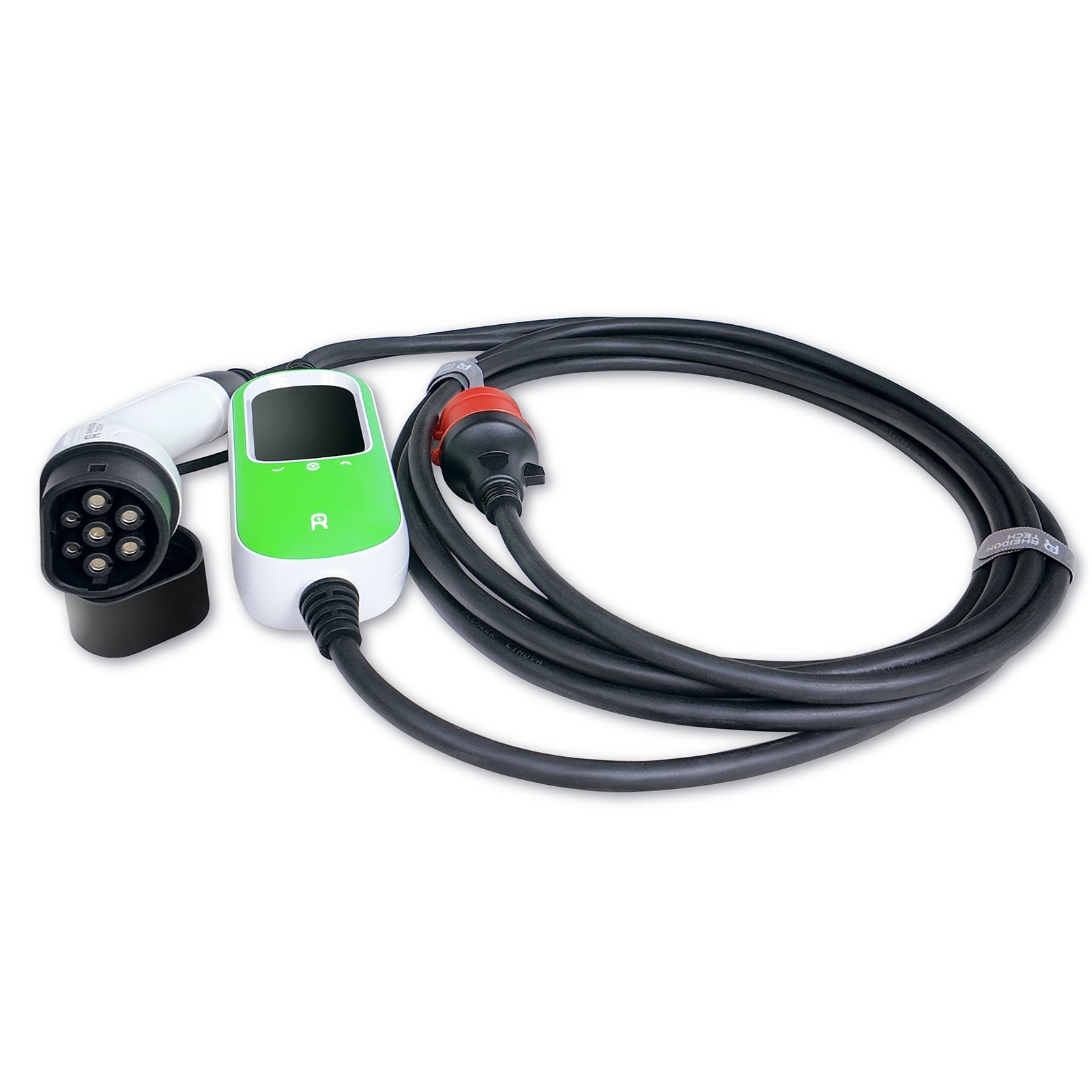

  • Cable length tailored to your needs - Provides a practical range for everyday use, ensuring reliable performance both in the garage and outdoors.
  • Charge anywhere: at home, at the office, on the go – Whether you're in the garage, at work or on the road, our charger offers maximum flexibility. Reliable, easy to use and perfect for everyday life!

In stock
paypal visa master
View full details
  • Description
  • Features
  • Specifications

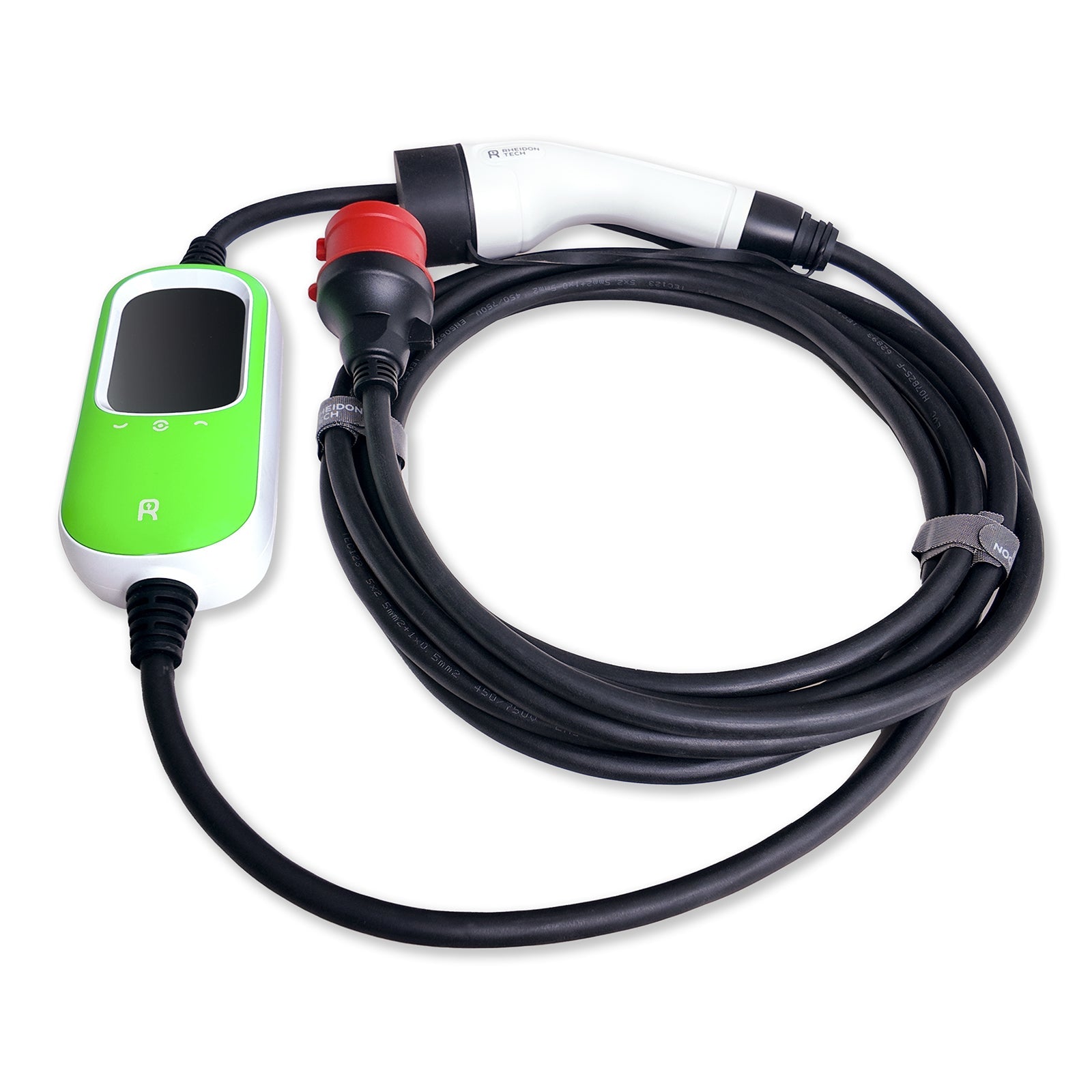

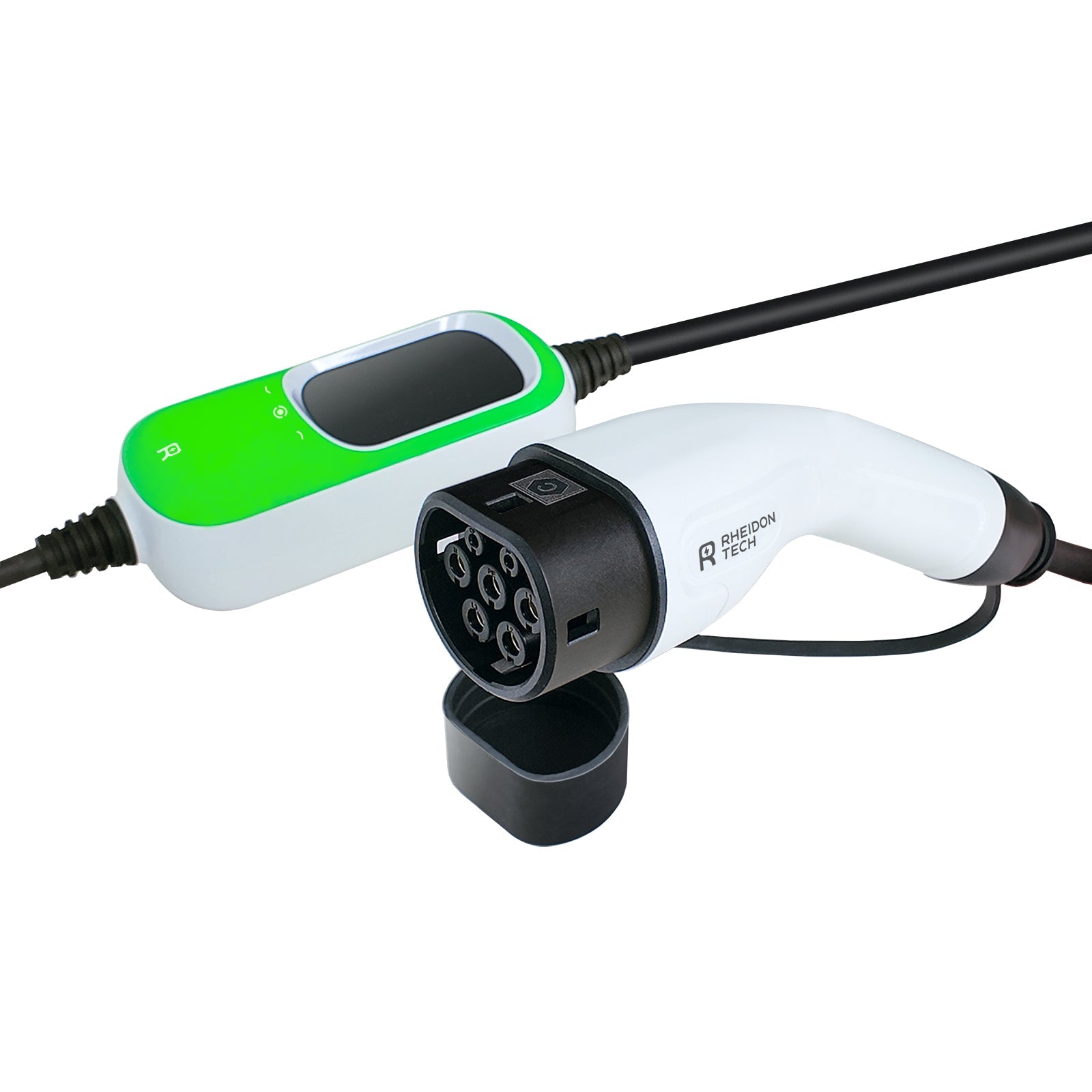

PC100-11K: Portable EV Charger

The PC100-11K is a powerful and flexible mobile charging station, specially designed for electric and plug-in hybrid vehicles. It is versatile and can be used at home, at work or on the go. With its compact design and impressive 11 kW charging power, the PC100-11K is your reliable partner for stable power supply, wherever you are.

The innovative two-way design allows for easy transport, so you can quickly charge wherever you are. Alternatively, the PC100-11K can be used at home as a fixed wallbox, using a special mounting bracket. This combination of flexibility and safety makes it the ideal solution for various needs.

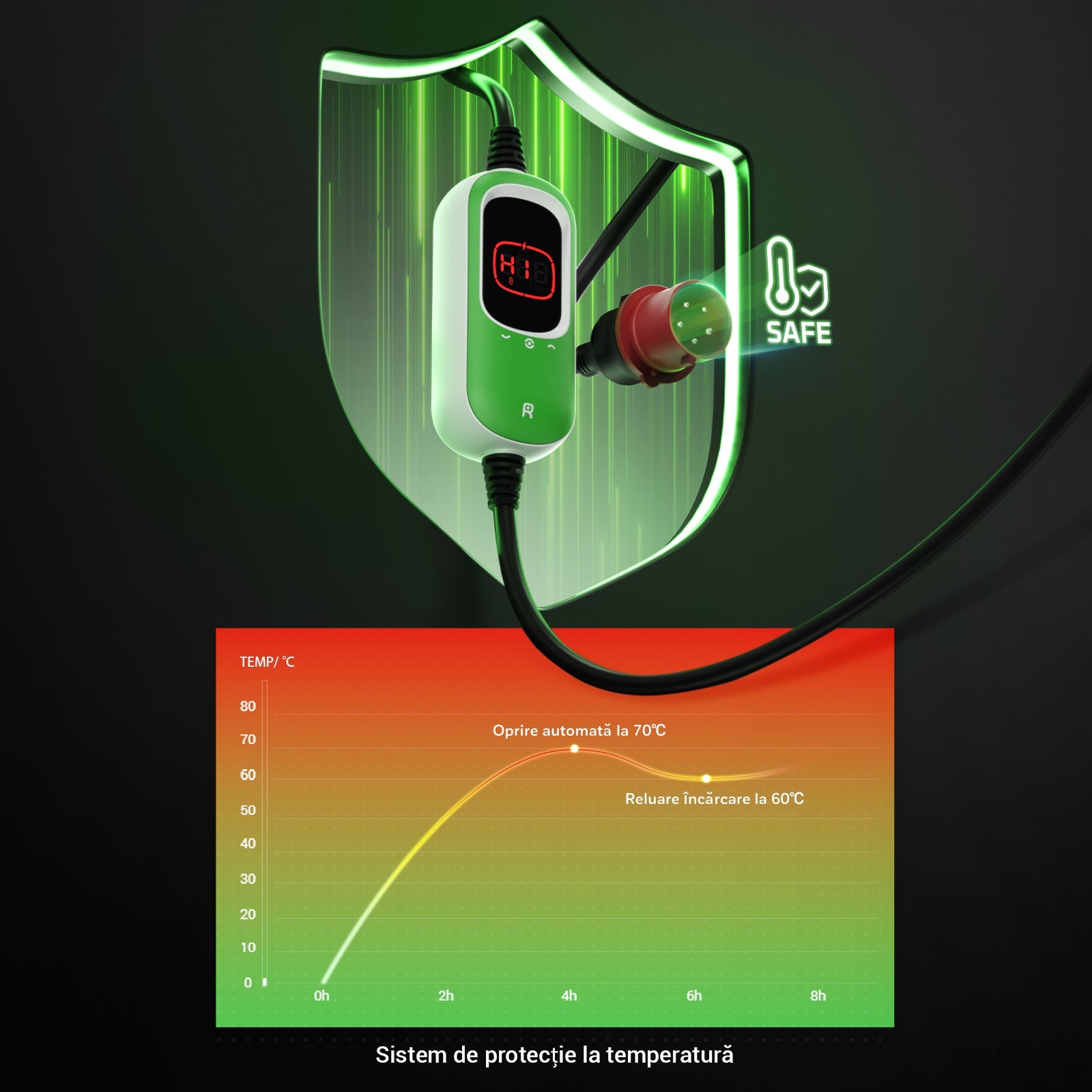

Charging safety through intelligent temperature monitoring

  • Dual monitoring system : Monitors both the charging station and CEE socket temperature to effectively prevent overheating.
  • Stop at 70°C : Charging stops immediately if the temperature exceeds 70°C.
  • Resume at 60°C : Charging resumes automatically after the temperature returns to a safe level.

RCD Protection: Real-time detection of circuit faults and automatic shutdown

  • Double protection switch : RCD Type A (30mA) and DC protection (6mA) integrated for maximum safety.
  • Real-time fault detection : Continuous circuit monitoring during charging.
  • Automatic safety shut-off : Charging stops immediately upon detection of circuit faults.

Robust and durable – Suitable for all weather conditions

  • Compact and durable design : Small but extremely durable, ideal for versatile use.
  • IP65 protection rating: Dust and water resistant, reliable for both indoor and outdoor use .
  • Pressure resistant : Can withstand a weight of up to 2 tons without any problems.
  • Resistance to extreme temperatures : Works reliably between -30°C and +50°C.

50% charge in just 3 hours

  • High charging power : Maximum power of 11 kW for high efficiency.
  • Extended range : Up to 80 km of range per hour of charging (example: Tesla Model 3 Long Range).

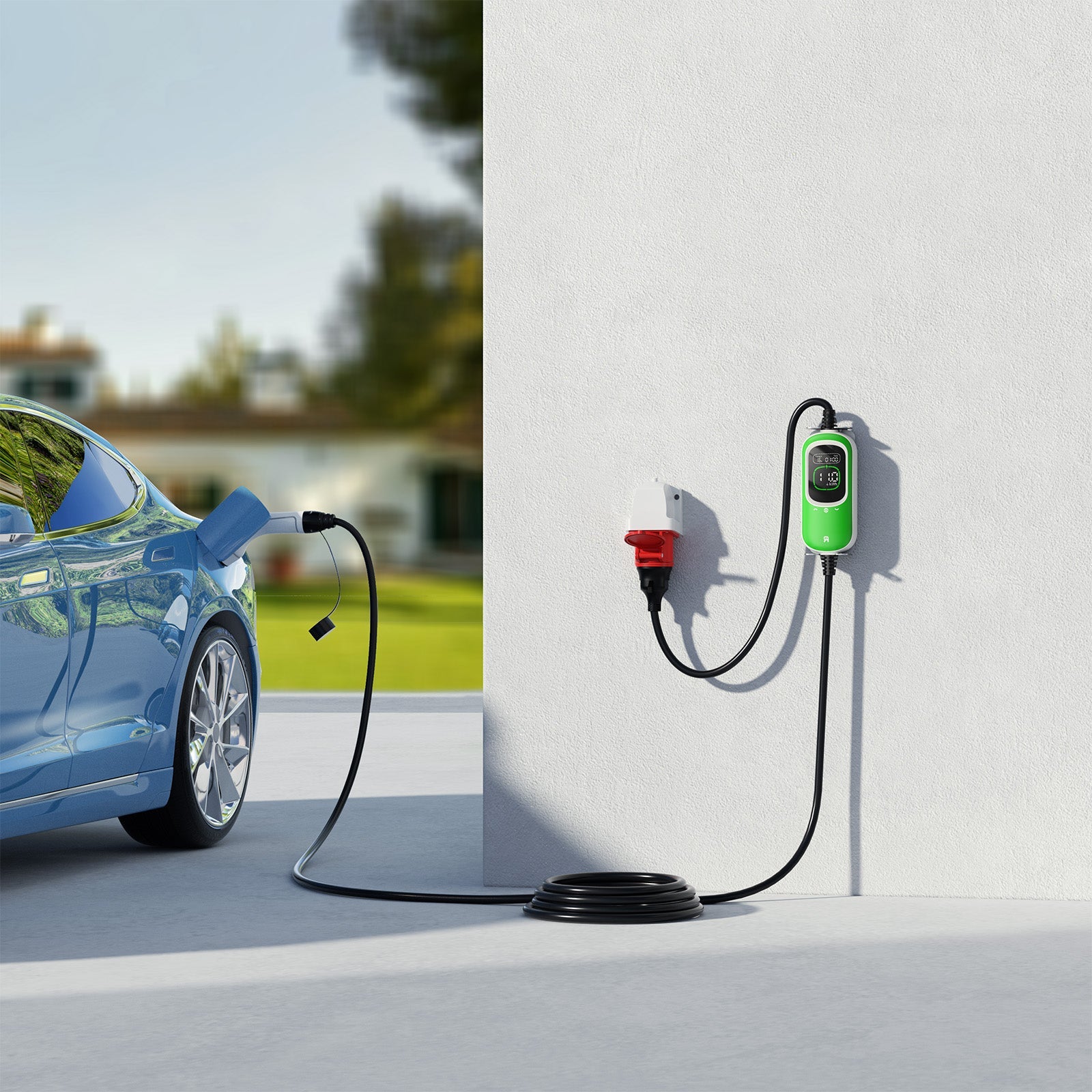

Portable for on-the-go or at home use – Two modes, maximum flexibility

  • Innovative design : Allows flexible use in various charging scenarios.
  • Portable charging station : Easy to carry, ideal for flexible charging needs.

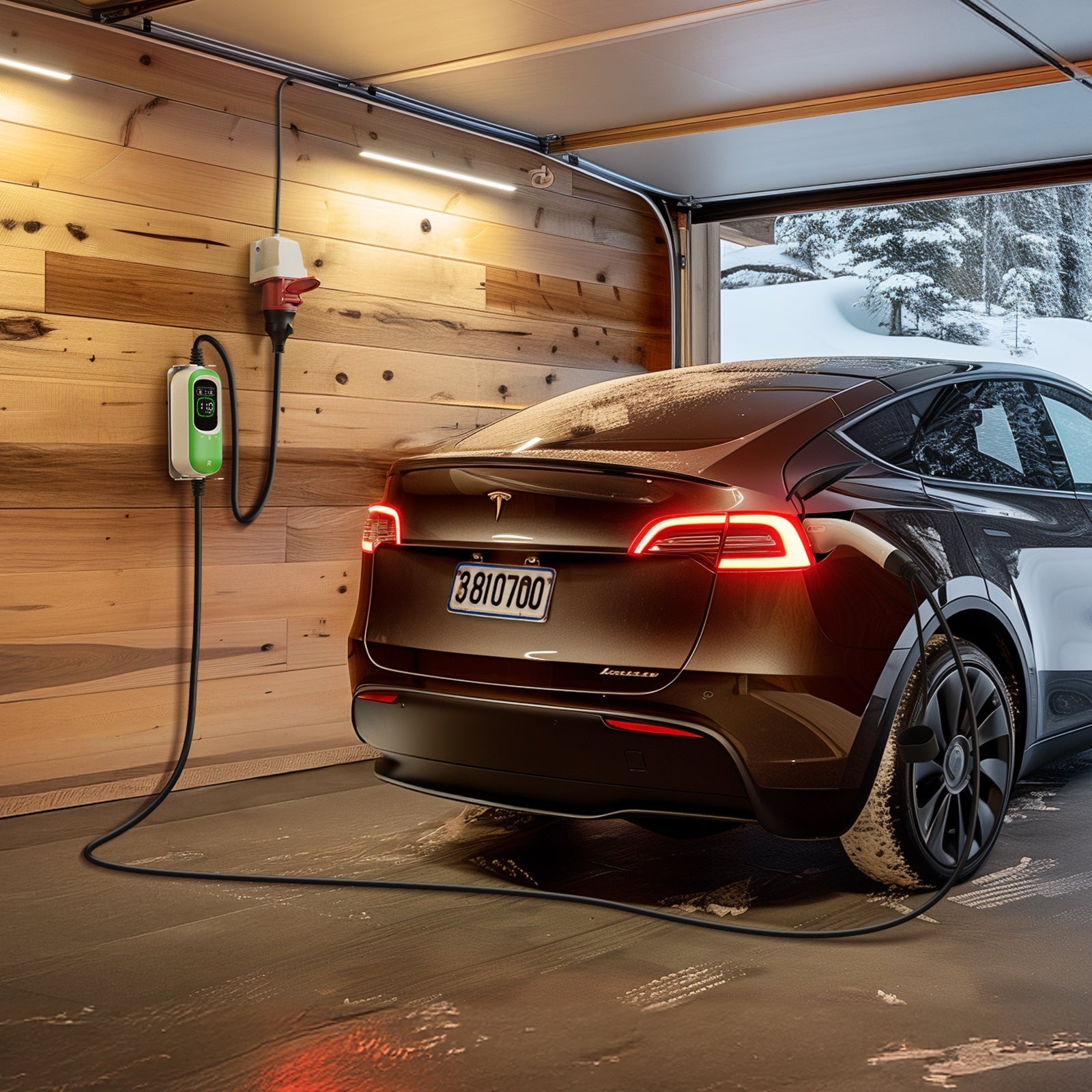

  • Practical wallbox : Can be easily mounted on the wall with a special bracket – perfect for home use.

Plug & Play – Simple and economical

  • No installation required : Works without professional installation or additional configuration.

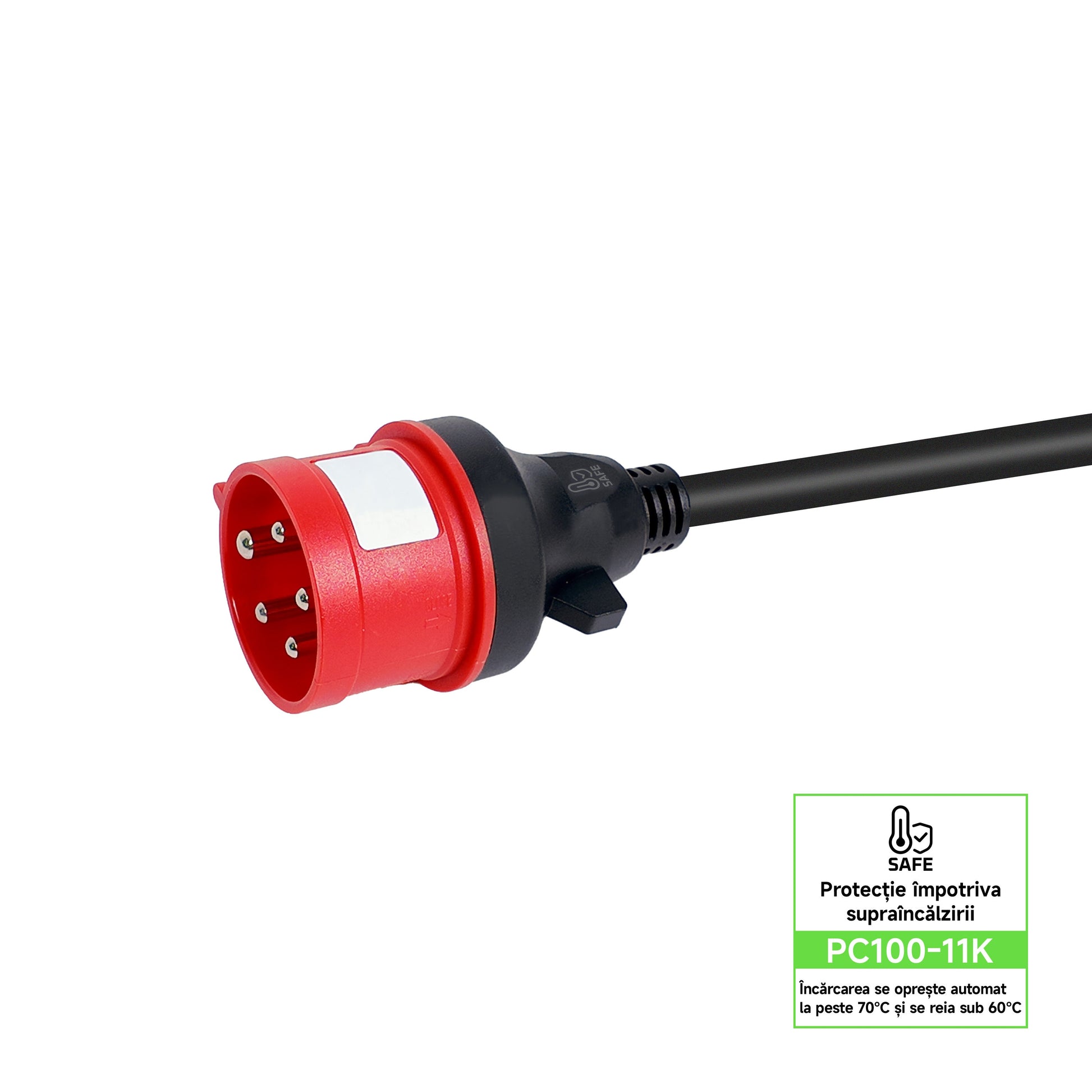

  • Plug-and-Play : Just plug it into a 16A CEE socket and it's ready to use.
  • Cost savings : Avoid installation costs and complicated adjustments.

Easy current control with a simple push of a button

  • Individual charging adjustment : The charging power can be flexibly adjusted between 1.4 kW and 11 kW.
  • Optimized night-time charging : Start-up delay function for efficient consumption during off-peak hours.

Standby consumption of only 0.003 kWh

  • Minimum standby consumption : Approximately 3 W for maximum energy efficiency.
  • Annual energy consumption : Only 26.28 kWh with continuous operation – comparable to a Wi-Fi router.
  • Efficient and environmentally friendly : Reduces unnecessary energy loss and protects the environment.

Compatible with 99% of EV models on the market

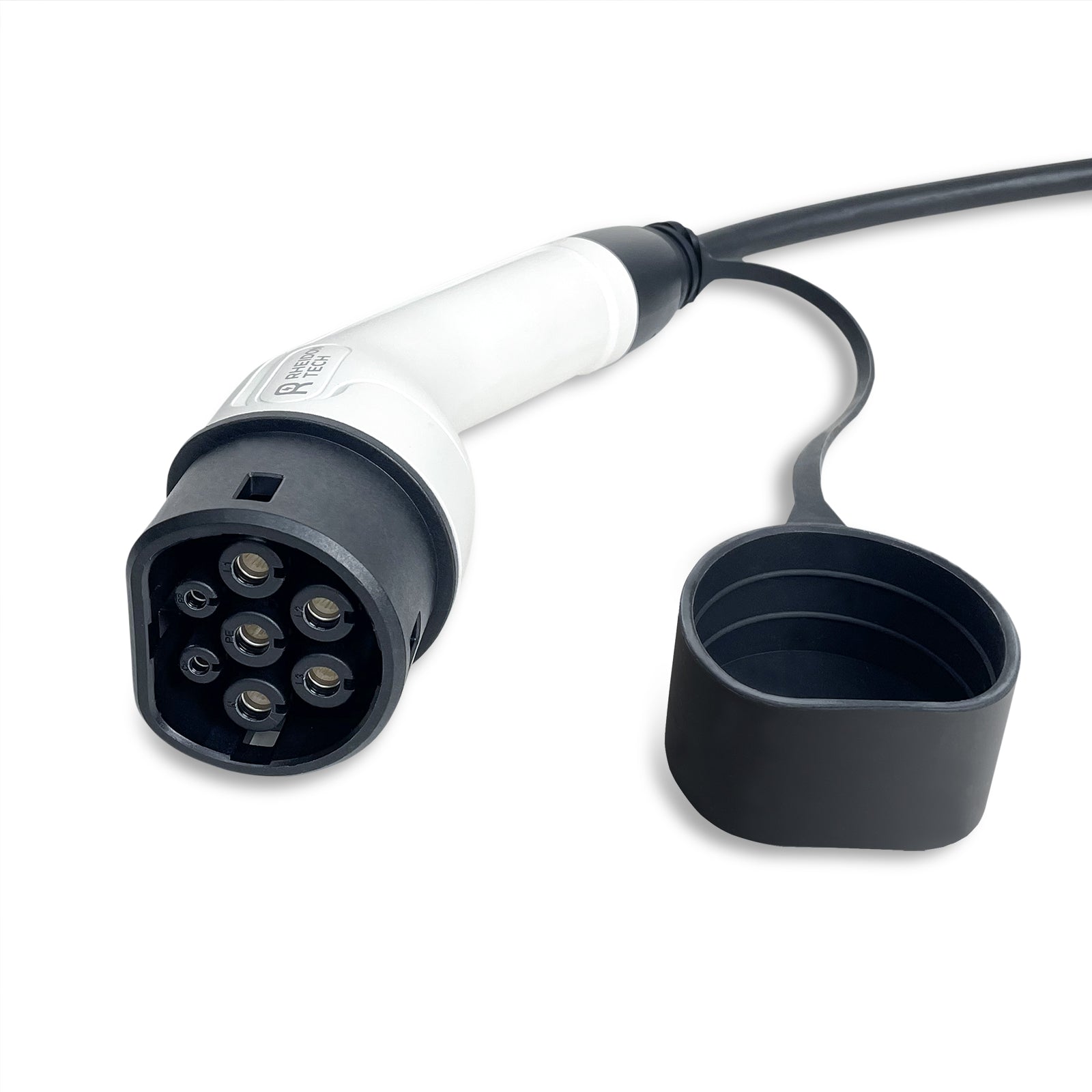

  • Universal Compatibility : Supports 99% of electric vehicles with Type-2 charging port.
  • Supported brands : Volkswagen, Mercedes, BMW, Audi, Skoda, Opel, Seat, Hyundai, Ford, Kia, Renault, Dacia, Volvo, Fiat, Toyota, Tesla, Mini, Mazda, Peugeot, Citroën, Nissan and many more.

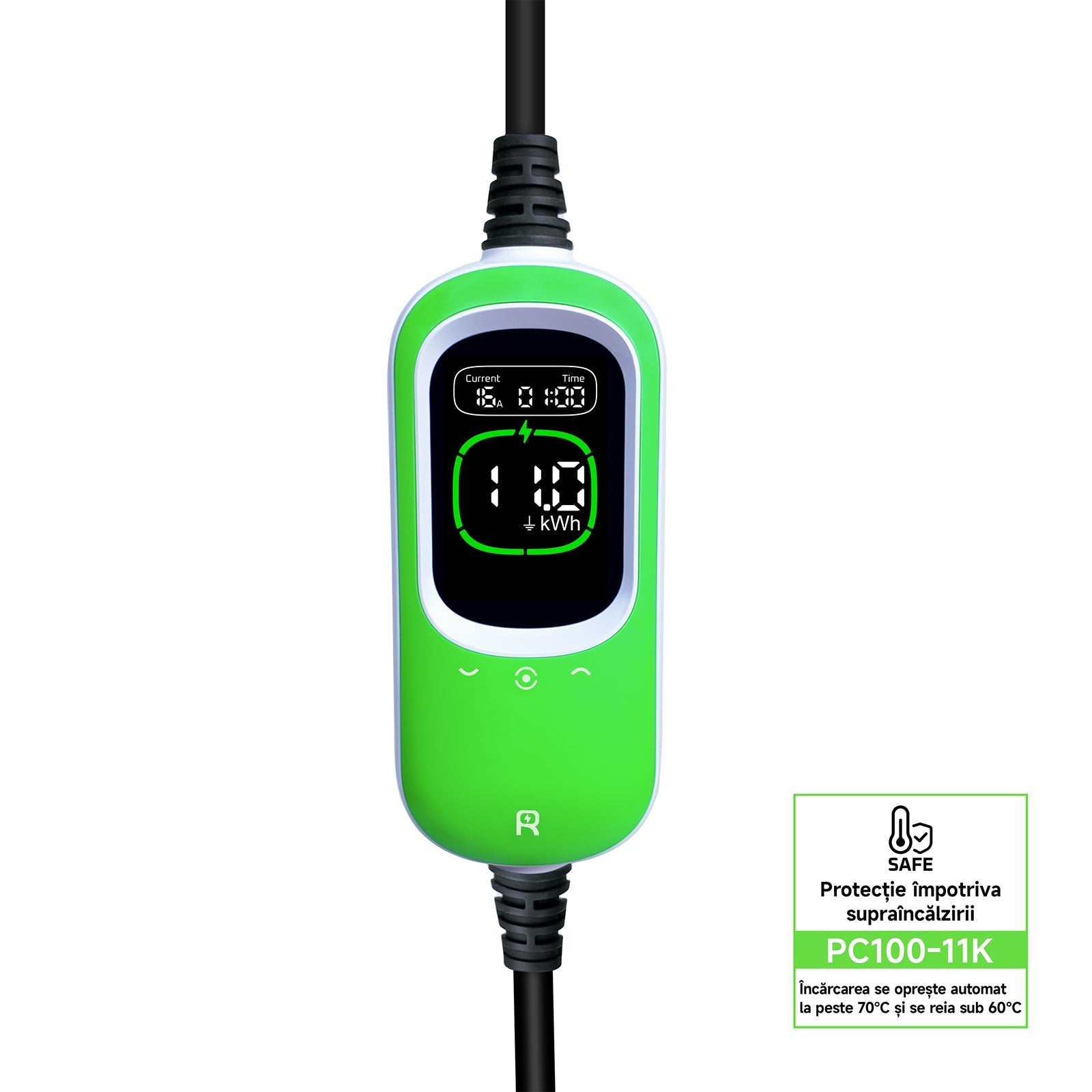

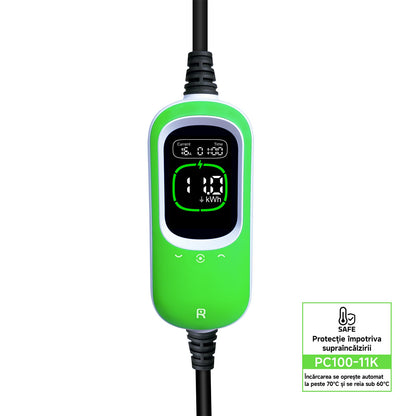

Large display for clear viewing

  • Real-time information : Displays voltage, current, power and charged energy in real time.
  • Easy to use : Clear and legible display for comfortable monitoring.

Charging power

  • Maximum power: 11 kW (16 A 3 phases)
  • Amperage and status display: Via LED screen
  • Charging power adjustment: By pressing a button
  • Charging power adjustable between 1.4 kW and 11 kW, depending on the number of phases of the car's on-board charger (charging current adjustable between 6A and 16A)

Product Specifications

  • Mobile Charging Station / Wallbox: IC-CPD, according to EN IEC 62752:2016/A1:2020
  • Dimensions: approx. 21.2 x 9.4 x 6.5 cm
  • Weight: approx. 4.3 kg (including packaging)
  • Connection: Single-phase or three-phase
  • Nominal Voltage: 230 - 240 V (single phase) / 400 - 415 V (three phase)
  • Nominal Frequency: 50 Hz
  • Standby consumption: 3.1 W (LEDs off)

Permitted Environmental Conditions

  • Installation Location: Indoor and outdoor use
  • Operating Temperature: -30°C to +50°C
  • Storage Temperature: -30°C to +65°C
  • Maximum Altitude: 2,000 m above sea level
  • Relative Humidity: Maximum 95% (non-condensing)
  • Impact Resistance: IK10

Safety

  • Integrated DC protection module with additional DC and AC detection (6mA DC, 30mA AC)
  • Anti-theft protection: Charging cable lock
  • Input voltage: Check phase and voltage
  • Switching functions: Check switching functions
  • Earthing check: For TT, TN networks (switchable earthing check for IT networks – Norway mode)
  • Current sensor: Three-phase monitoring
  • Temperature sensors: Regulates charging current in case of overheating
  • IP65 protection: Protection against dirt and water, suitable for continuous outdoor use

FAQ

Do Rheidon Tech chargers have RCD protection (residual current protection)?

All Rheidon Tech chargers are equipped with Type A + DC 6 mA, with protective conductor monitoring.

Why does the Rheidon Tech PC100 charger provide a safer charging experience? What specific safety features does it include?

In addition to standard protection features, the PC100 is equipped with NTC temperature monitoring at the end of the plug. If abnormal temperature conditions are detected, charging will automatically stop and only resume when the temperature returns to a safe level, ensuring the protection of the entire charging system.

Why does the Rheidon Tech charger need to test the ground circuit?

In real installation conditions, not all electrical networks are grounded. Especially in areas with high safety requirements or in permafrost regions, isolation transformers are used to eliminate the risk of electric shock to terminal equipment.

In order for the Rheidon Tech charger to work in such areas, ground detection can be disabled. This functionality is also useful in networks where ground cannot be detected (e.g. in Norway).

What connection cable (wire cross-section) should I use with the Rheidon Tech charger?

A circuit breaker (MCB) protects the wiring by automatically shutting off the circuit when the current flow is too high, preventing overheating or damage.

Recommended cable sizes depending on maximum current and installation method:
For a maximum current of 32 A:

6 mm²: Surface-mounted cables (not buried in walls)
6-10 mm²: Cables installed in protective tubes
10 mm²: Cables buried in insulated walls
For a maximum current of 16 A:

2.5 mm²: Surface mounted cables
4 mm²: Cables installed in protective tubes
10 mm²: Cables buried in insulated walls

Important notes:
The final cable cross-section must be determined by a qualified electrician, depending on the specific installation conditions.
Electricians must also consider the simultaneity factor, which assumes that the wire is operating at maximum continuous load. This factor is essential for correctly sizing the cable.

How to set charging parameters for electric vehicles? Why does charging speed vary?

For the Rheidon Tech 22 kW charger, the current can be adjusted between 6 A and 32 A.
For 3.6 kW and 11 kW chargers, the current can be adjusted between 6 A and 16 A.

The power can be reduced manually if necessary.

To use the charger at full power:
The 22 kW charger requires a 32 A fuse.
The 3.6 kW and 11 kW chargers require a 16 A fuse.

Important notes:
The vehicle's on-board charger (OBC) is what determines the maximum charging speed.
Each vehicle model supports different AC charging rates, which may limit the actual charging speed.

Higher current (more amps) allows for faster charging, but lower current can be more efficient, helping to extend battery life and stabilize the electrical grid.
The actual charging power may be limited by the vehicle, even if the charger supports higher power.

For more information about the factors that influence the charging speed of electric vehicles, visit our blog.

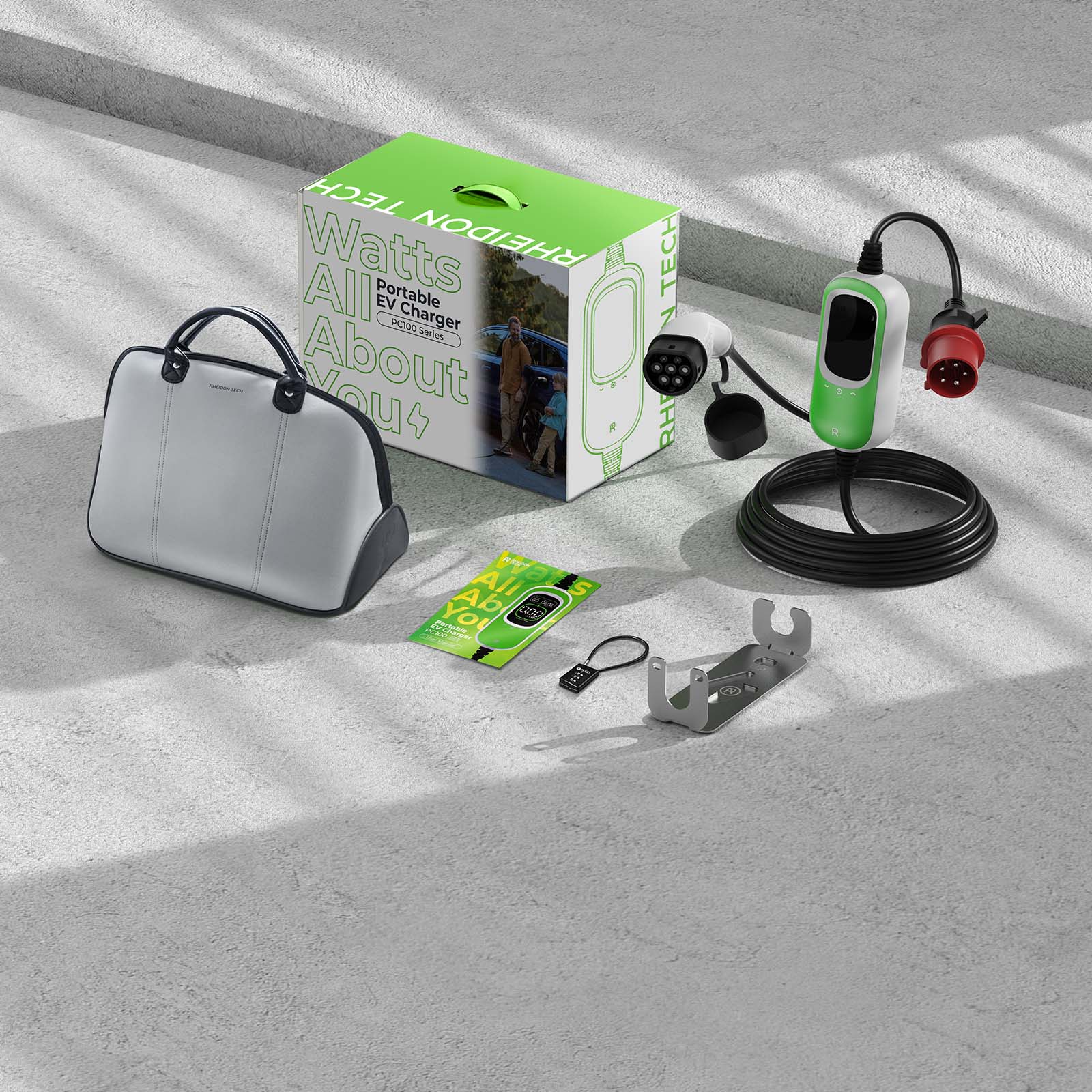

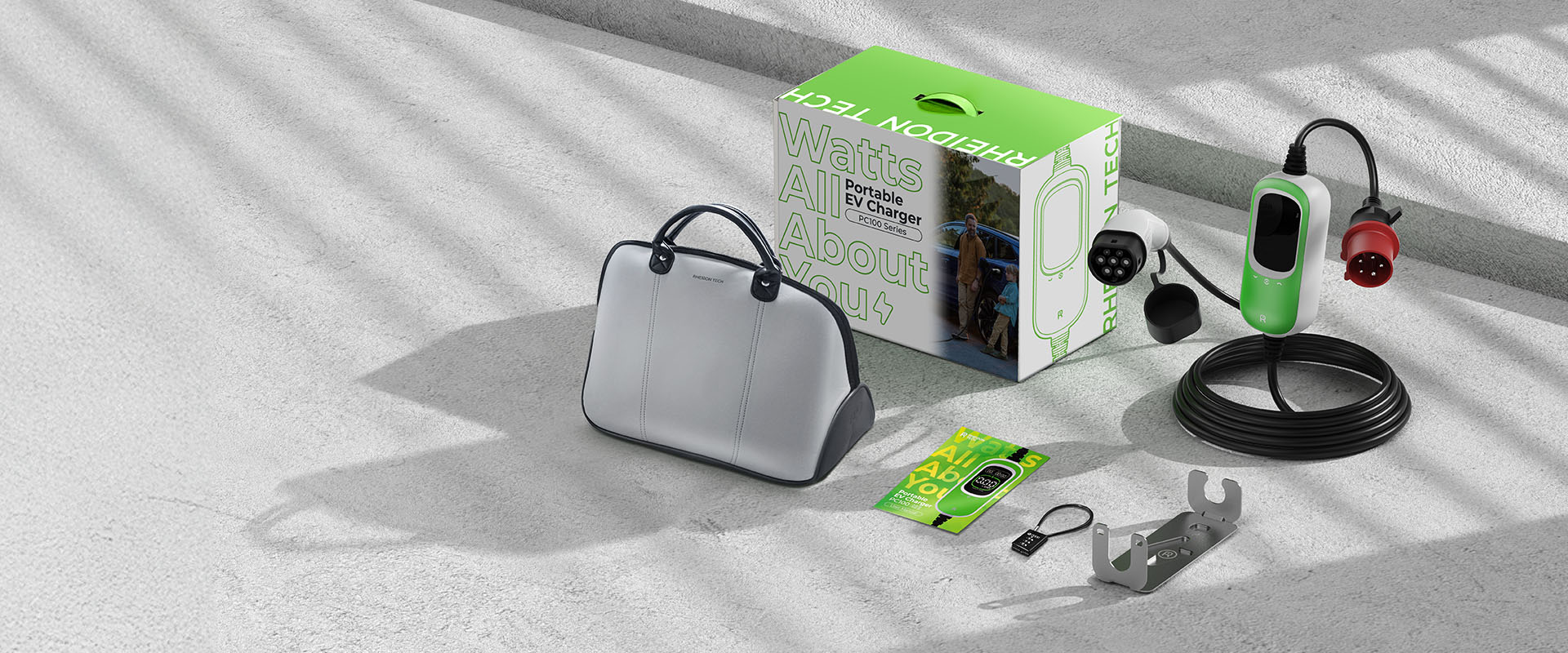

What's in the package?
